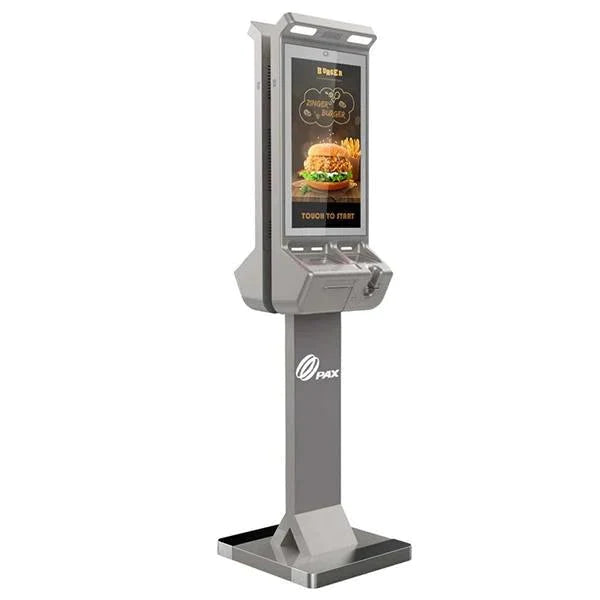

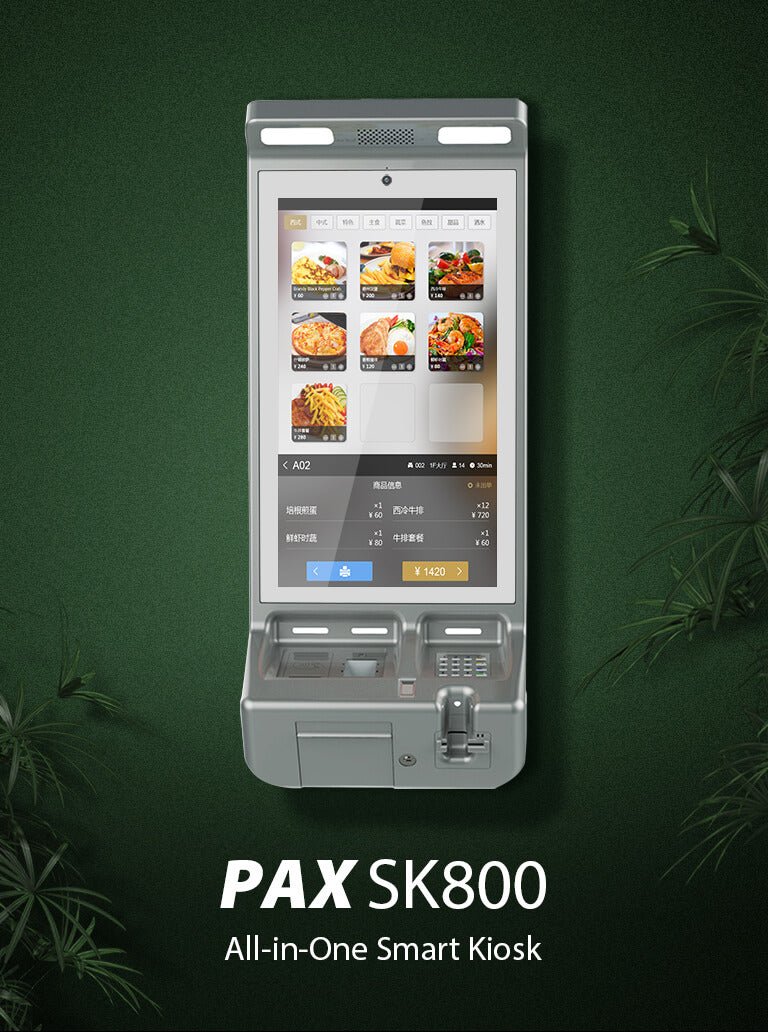

PAX SK800 All-in-One Kiosk

PAX SK800 All-in-One Kiosk

Regular price $4,250.00 USD
Regular price Sale price $4,250.00 USD
Sale Sold out

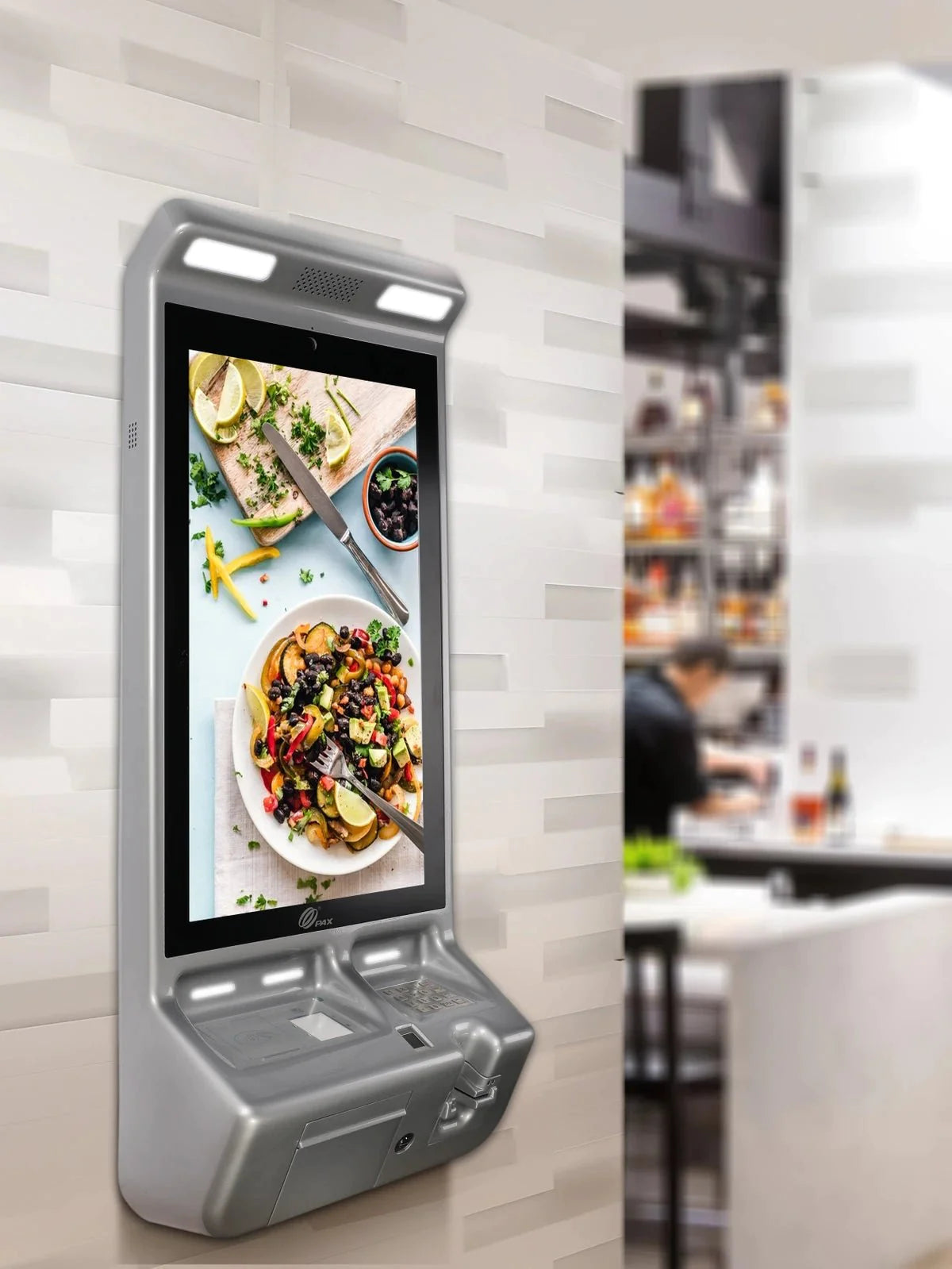

Easy-to-mount self-service kiosk solutions with fully integrated payment, offering shoppers a modern & interactive retail experience. Providing access to product information and promotions in a more engaging manner makes it easier for people to interact in a way that is efficient and familiar to them. The SK-Series of Smart kiosks serve a variety of unattended use cases including ordering at restaurants, ticketing, hospitality self-service, and entertainment self-service.

Features

  • 23.8", 1920 x 1080 pixels HD anti-vandalism touchscreen
  • 4G + Bluetooth + WiFi + Beacon
  • Hybrid card reader
  • NFC contactless
  • Inbuilt cameras
  • Inbuilt thermal printer
  • Optional fingerprint Scanner
  • IP34 and IK07 impact resistance
  • li>PCI PTS 5.x, SRED

Specifications

  • Brand: PAX
  • Product Type: Smart Kiosk
  • Height: 37.99"
  • Length: 15.35"
  • Width: 6.89"
  • Weight: 28.66 lbs
  • Operating System: PayDroid Powered by Android 6.0
  • Processor: Cortex A17
  • Memory: 16GB eMMC Flash + 2GB DDR RAM | Extended Micro SD card slot up to 128GB
  • Card Readers: Hybrid Chip & PIN + Magnetic Stripe | NFC Contactless
  • Camera: 8MP Front-Facing
  • Displays: Anti-Vandalism 23.8" IPS 1920 x 1080 FHD Pixels Touch Screen
  • Comms Configurations: 4G + Ethernet + WiFi (2. 4GHz/5GHz) + Bluetooth 4.0 | Ethernet + WiFi (2. 4GHz/5GHz) + Bluetooth 4.0
  • Battery: No
  • Printer: 75 lines/sec | Paper roll outer diameter: 3.14" | Optional Automatic Receipt Cutter
  • SIM/SAM: 1 Micro SIM
  • Keys/Buttons, 16 Keys: 0~9 | Stop | Correct | Info | Enter | Up | Down
  • Audio: 1 Microphone | 2 Speakers
  • Ports: 1 Ethernet | 1 RS232 | 1 RS485 Half-Duplex | 1 HDMI | 1 Power | 1 Micro USB
  • Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
  • Storage Temperature: -20°C ~ 70°C (-4°F ~ 158°F)
  • Relative Humidity, Non-Condensing: 5% ~ 95%
  • Accessories: Standing Base | Fingerprint Reader 256 x 360 Pixels 508 DPI

Certifications

  • PCI PTS 5.x SRED
  • EMV L1 & L2
  • EMV Contactless L1
  • Visa payWave
  • MasterCard Contactless
  • UPI qPBOC
  • Amex ExpressPay
  • Discover D-PAS
  • JCB J/Speedy
  • Interac Flash
  • MasterCard TQM
  • Common.SECC UKCC
  • IK07, CE, RoHs
