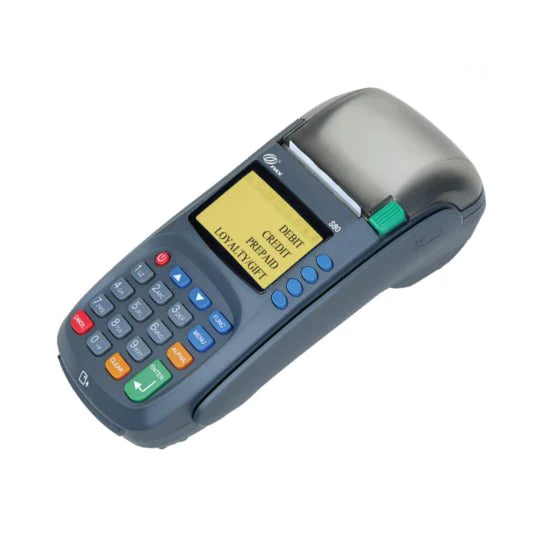

PAX S80 Dual Comm 16Mb EMV NFC PCI 4.0 (Refurbished) - Blue

PAX S80 Dual Comm 16Mb EMV NFC PCI 4.0 (Refurbished) - Blue

Regular price $125.00 USD
Regular price Sale price $125.00 USD
Sale Sold out

PAX's S80 is an advanced countertop POS terminal which combines innovation and high performance to assure, faster, more reliable transactions.

The PCI PTS 4.0 approved S80 offers advanced connectivity, equipped with various communication technologies. An intuitive ATM-style interface and ergonomic keypad make operation easier for merchant and consumer alike.

The S80 can support multiple payment and value-added applications, making this one of the most reliable and advanced devices in the market.



Specifications:

Processor
32-bit ARM11

Memory
192MB (128MB Flash, 64MB SDRAM)

Display

128 x 64 pixel LCD, White backlit

Keypad
10 numeric / letter & 8 function keys
4 ATM keys, 1 Power ON / OFF key

Printer

Thermal printer, Speed: 25 lps
Standard paper roll: 58mm (2.25 in.)

Magnetic Card Reader

Track 1 / 2 / 3, bi-directional, ISO7812

Smart Card Reader

1 user card, EMV

Contactless Card Reader (built-in)

13.56MHz, ISO14443 Type A/B, Mifare, Felica, NFC
Maximum effective distance up to 4cm
4 RF Indicators: Blue, Yellow, Green, Red

Card Slots

3 SAMs, ISO7816
Communication

Modem:
Sync. (HDLC up to 9600bps);
Asnyc. (V.92, up to 56kbps)
Ethernet (optional)

Peripheral Ports

1 x PINPad, 1 x RS232, 1 x Ethernet,
1 x Line, 1 x mini USB (OTG)

Security

PCI PTS 3.x approved
DUKPT, Master / Session, DES, 3DES
ANSI / ISO9564 format 0,1,3
PIN ciphered key algorithm
ANSI X 9.9 / X 9.19 MAC algorithm

Voltage

Input: 100~240VAC,50Hz / 60Hz, 1.5A
Output: 8.2VDC, 3A

Physical

Length: 216mm (8.5 in.)
Width: 95mm (3.74 in.)
Height: 86 mm (3.390 in.)

Weight

525g
