PAX A920 Standard Terminal

DESCRIPTION:

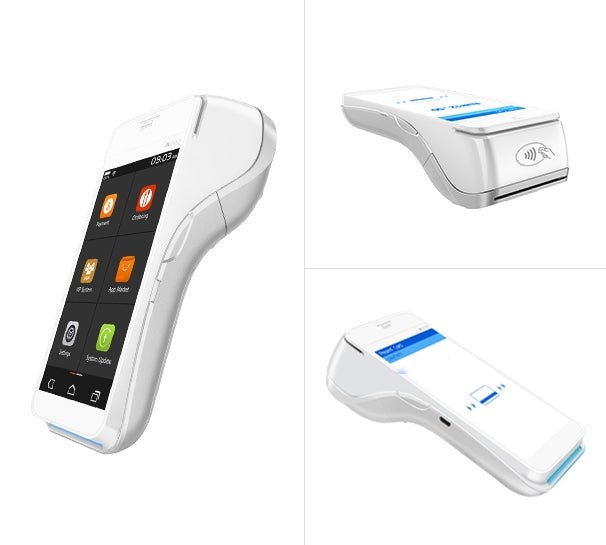

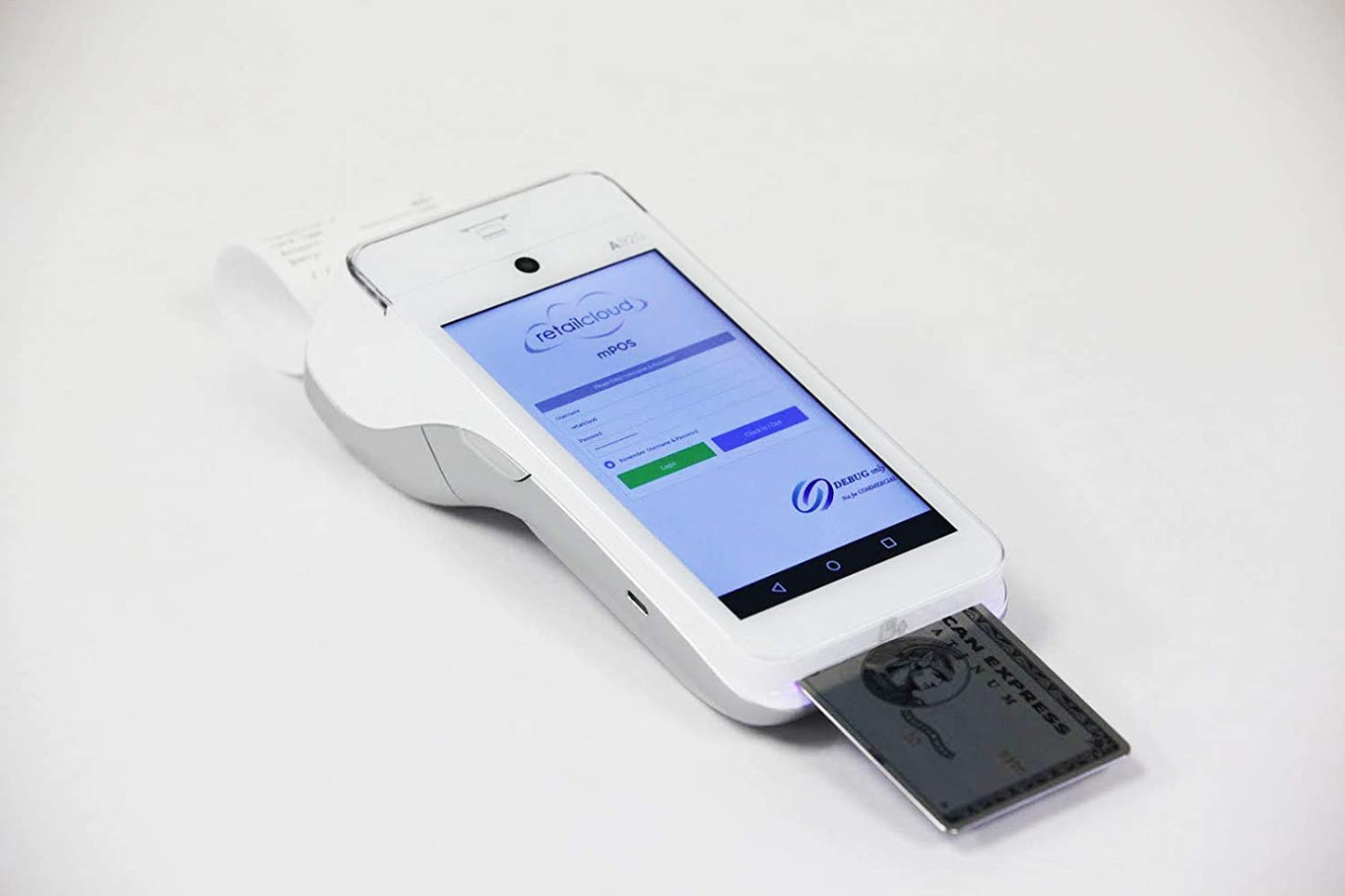

The A920 is the revolutionary terminal that started it all. A strikingly beautiful and ergonomically designed terminal, this SmartMobile delivers elegance, style, and security to every payment experience. The A920 combines the full features of an Android tablet with a powerful payment terminal, all in a sleek and compact design. The A920 delivers an integrated camera, high-speed thermal printer, and high-capacity battery to meet the daily demands across all dynamic Retail or Hospitality environments. This item comes with device and charger only. SIM Card and charging cradle/base is not included.

PRODUCT SPECIFICATIONS:

Operating System
Android Powered by Android 7.1

Processor
Cortex A7 + ARM

Memory
8GB eMMC Flash + 1GB DDR RAM
1 x Extended Micro SD Card Slot Up to 128GB (OS 7.1) or 32GB (OS 5.1)

Card Readers
Chip & PIN

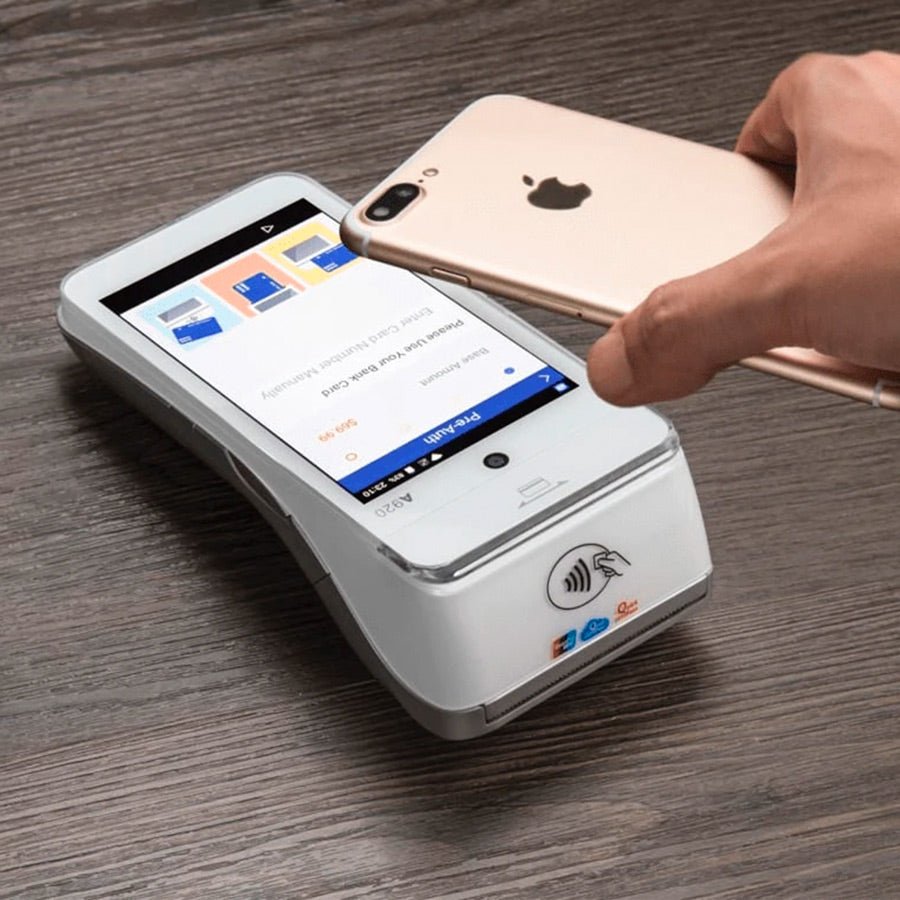

NFC Contactless
Magnetic Stripe

Cameras
5MP Rear-Facing
0.3MP Front Facing

Displays
5'' IPS WXGA, 720 x 1280 Pixels
Multi-Point Capacitive HD
Touch Screen

Comms Configurations
WiFi (2.4GHz, optional 5GHz)
4G

Battery
5250mAh
3.7V

Printer
40 lines/sec
Paper Roll Outer Diameter: 40mm

SIM/SAM
1 x SIM + 2 x SAM

Keys/Buttons
3 Keys: Power ON/OFF | Volume+ | Volume-

Audio
1 Buzzer
1 Speaker
1 Microphone

Ports
1 Micro USB OTG
6 PIN POGO PIN

Adapter
Input: 100 - 240V AC, 50Hz/60Hz
Output: 5.0V DC, 2.0A

Physical
175.7 x 78 x 57 mm

Weight
458g (including battery)

Environmental
Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F)
Storage Temperature: -20°C ~ 70°C (-4°F ~ 158°F)
Relative Humidity: 5% ~ 95%, Non-Condensing

Accessories
1 RS232 (RJ45)
1 Ethernet (RJ45)
1 Power Port (Micro USB)
1 Micro USB (Device)
1 USB (Host)

Certifications
PCI PTS 5.x SRED EMV L1 & L2 | EMV Contactless L1 | Visa payWave | MasterCard Contactless | UPI qUICS | Amex ExpressPay | Discover D-PAS | JCB J/Speedy | Interac Flash | MasterCard TQM | CE | RoHs | FCC
